Welcome to REVOXREMOTES.com

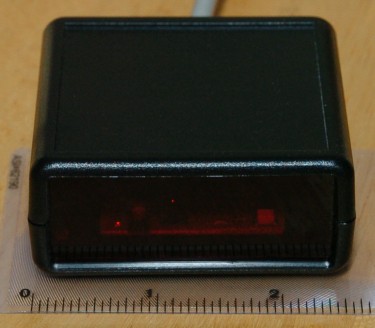

Wireless IR remote receiver for the Revox B77 and PR99 r-r decks.

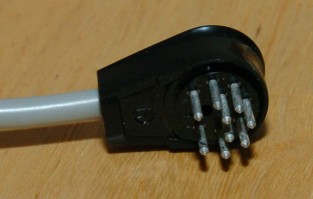

1/15/2010 - I have some good news and some bad news. The good news is I have more of the 10-pin DIN connectors. The bad news is Studer-Revox has told me that that's it. No more connectors.
Contact me if you are interested. My email address is p9019 @yahoo.com.
This unit controls the standard transport controls on the Revox R-R deck (Play, Stop, F.F., Rew, Pause and Record). It uses any standard universal remote programmed to control a Sony VCR.
Current price for this unit and a RCA RCU-300 3in1 Universal Remote is $85 plus shipping of $7 within the US and $12 outside the US.
Classic Nakamichi Tape Deck Remote Receiver
Classic Nakamichi Tape Deck Remote Receiver with Power Control
Nakamichi ST-7 / ST-7E / ST-70 AM/FM Tuner Remote Receiver
NEW IR Wireless Remote Receiver for the Nakamichi 730 Receiver
Current projects
I recently bought a Nakamichi Receiver 2 and am currently working on an adapter that will translate Nakamichi System Remote commands from the Receiver1/2/3, RE-1/2/3/10, AV-7/8/10, CA-1, IA-1z and several other newer receivers and the CD Player 1/2 Sync. Rec output into remote commands for the Classic Nakamichi tape decks (580, 580M, 581, 581Z, 582, 582Z, 680, 680ZX, 681ZX, 682ZX, 700ZXE, 700ZXL, 1000ZXL, BX-300, CR-2, CR-3, CR-4, CR-5, Dragon, LX-3, LX-5, MR-1, RX-303, RX-505, ZX-5, ZX-7 and ZX-9). Nakamichi has a box that does exactly this, called the RC-4, but, it is not available anymore.
Update 9/2/08 - My Nakamichi System remote project is almost done. I've finish prototyping and have a final PC board design. I hope to send it out for fab in the next week or so. This unit will be able to control two tape decks from the same remote receiver. One configured for Tape 1 and the other configured for Tape 2. System Remote tape decks include the CassetteDeck 1/1.5/2/3 and DR-1/2/3/8/10. These tape decks have a little System Remote jack on the back that looks like a mini headphone jack.
Update 9/1/08 - I have finished writing and testing code for decoding the serial bit stream for Nak System remote. I will now start writing the code required to translate this code into signals compatible with the classic Nak tape decks. Basically duplicating the Nakamichi RC-4 remote signal converter which is no longer available.
Update 4/29/07 - I received chips from Ireland for building a remote transmitter compatible with Nakamichi's original RM-580 receiver. This is for people who may have an original RM-580, but, are missing the remote transmitter. 8/1/07 - I'm trying to find buttons to use for this project, but, am having a really hard time. There are only a few buttons that would work in the case I have. They all seem to be special order or very expensive.
Future projects - Contact me to get on the list to be notified when it's available. The more people get on the list the faster I will get it going.
Nakamichi RM-580T - I'm trying to remake the transmitter for the genuine Nakamichi RM-580. Why, because I have one that needs the transmitter and universal remotes don't work.
Nakamichi 480 series Tape Deck Remote Receiver
Teac Z-5000/6000/7000 Remote Receiver
Got an application? eMail me at p9019 @yahoo.com
