Revox Remote Instructions

Installation: Turn off the power to the tape deck. Plug the Revox Remote into the 9-pin Remote connector located on the top or back of the tape deck. Now power can be turned back on. The light on the front of the Revox Remote should be on.

The Revox Remote controls the standard 6 transport functions: Play, Stop, F.F., Rewind, Record and Pause using any Universal remote programmed for the proper Sony VCR code.

The Revox Remote can be programs to respond to Sony VHS VCR codes or Sony Beta VCR codes. To select between the two there is a jumper inside the unit. Remove the two screws on the bottom of the unit and remote the top cover.

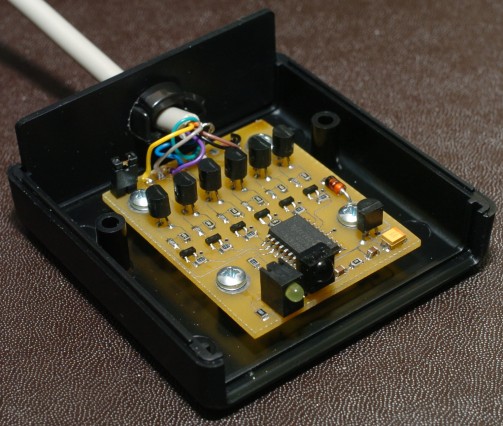

Toward the back where the cable comes out there is a small jumper block. When the jumper block is installed the unit will respond to Sony Beta VCR codes. When the jumper is open the unit will respond to Sony VHS VCR codes.

Configuring the Universal Remote

Jumper

RCA
RCU-300

Sony
RM-V310

Jumpered

VCR-119

VCR-001(Beta VCR)

Open

VCR-099

VCR-003 (VHS VCR)

For instructions on configuring other remotes go to this page and select from the list of tested remotes. Click Here

To program the RCA RCU-300 remote press and hold the Code Search button until the red light comes on. Release the Code Search button and momentarily press the VCR-DVD button then enter the 3 digit codes (either 119 or 099). The red light should blink after each keypress and go out after the last digit is entered. Press the VCR-DVD button and press one of the transport control buttons (PLAY, STOP, FF, REW, REC or PAUSE). The light on the front of the Revox Remote should blink off momentarily. If the light does not blink off try reprogramming the remote or checking the state of the jumper inside the unit.

To program the Sony RM-V310 remote press and hold the SET button and then press and release the Power button then release the SET button. Press and release the VCR button. Now enter the three digit device code (either 001 or 003) followed by ENT. The remote is now programmed. Press the VCR button and then one of the transport control buttons. The light on the front of the Revox Remote should blink off momentarily. If the light does not blink off try reprogramming the remote or checking the state of the jumper inside the unit.
